MOTORES ACCESORIOS & REPUESTOS » FUERA DE BORDA REPUESTOS » TRIM E INCLINACION ELECTRICA

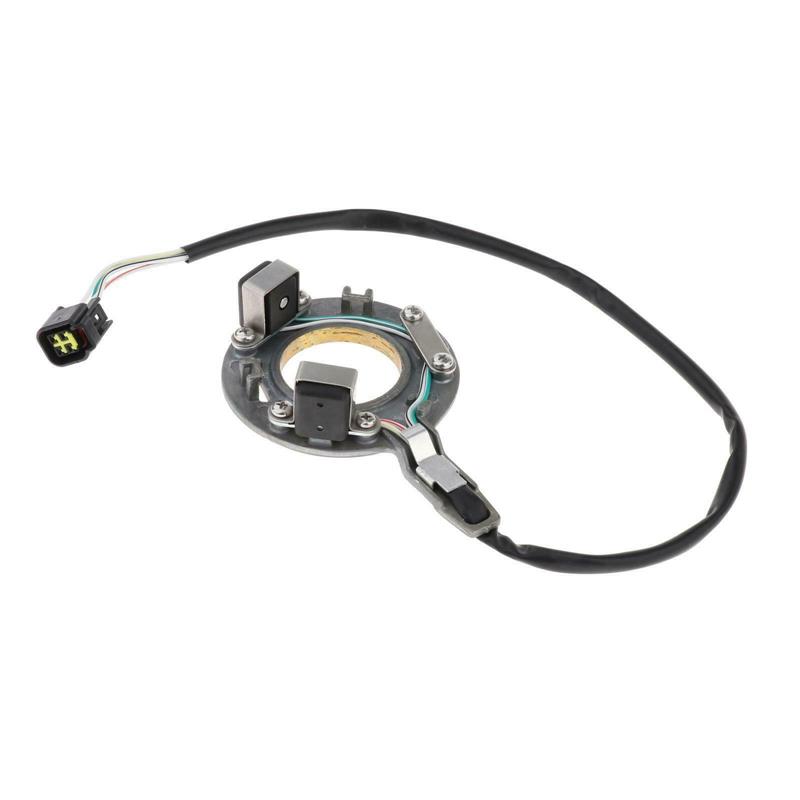

Bobina de Pulso Yamaha Parsun T 75 80 85 90HP
Parsun T85 T85-05040000 Yamaha 688-85580-00
)
COMPARATIVA ENTRE PARSUN Y YAMAHA
| ELECTRICAL SYSTEM I | |||
| SN. | PARTNO. | DESCRIPTION | YAMAHA PART.NO. |
| 1 | F25-05000026 | NUT FLYWHEEL | 90170-20137 |
| 2 | F25-05000025 | WASHER, FLYWHEEL NUT | 90201-21M18 |
| 3 | T85-05000400 | FLYWHEEL | 688-85550-00 |
| 4 | T85-05060013 | INDICATOR, IGNITION | 688-81332-01 |
| 5 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 6 | GB/T5783-M6x10 | BOLT M6x10 | |
| 7 | GB/T5783-M6x30 | BOLT M6x30 | |
| 8 | HT3.5x120 | CLAMP | |
| 9 | T85-05000100 | MAGNETO ASSY | 688-85510-01 |
| 10 | T85-05040000 | PULSER COIL BASE ASSY | 688-85580-00 |
| 11 | GB/T818-M5x12 | SCREW M5x12 | 97885-05012 |
| 12 | GB/T93-5 | SPRING-WASHER 5 | |
| 13 | T85-05040002 | PRESSURE PLATE A, PULSER COIL | |
| 14 | T85-05040100 | PULSER COIL ASSY | |
| 15 | T85-05040003 | PRESSURE PLATE, LEAD | |
| 16 | T85-05040001 | BASE, PULSER COIL | |
| 17 | T20-06040007 | LINKAGE JOINT | 663-85518-00 |
| 18 | T85-05040004 | PRESSURE PLATE B, PULSER COIL | |
| 19 | GB/T818-M6x12 | SCREW M6x12 | 90109-06M31 |
| 20 | T85-05000021 | FIXED BROAD, PULSER COIL | 688-41612-00 |
| 21 | T85-05040005 | GASKET PULSER COLL BASE | 688-41611-00 |
| 22 | T40-05000018 | SEMICIRCULAR KEY | 90280-05015 |
| 23 | T85-05000039 | PULLEY, STARTER | |
| 24 | GB/T93-8 | SPRING WASHER 8 | 92995-08100 |
| 25 | GB/T5783-M8x16 | BOLT M8x16 | 97095-08016 |
